Introverted Invertebrates · 3D Prints

Tools from
the shrimp room.

Practical designs for observation and testing.
Print a prototype. Check its fit. Share what you learn.

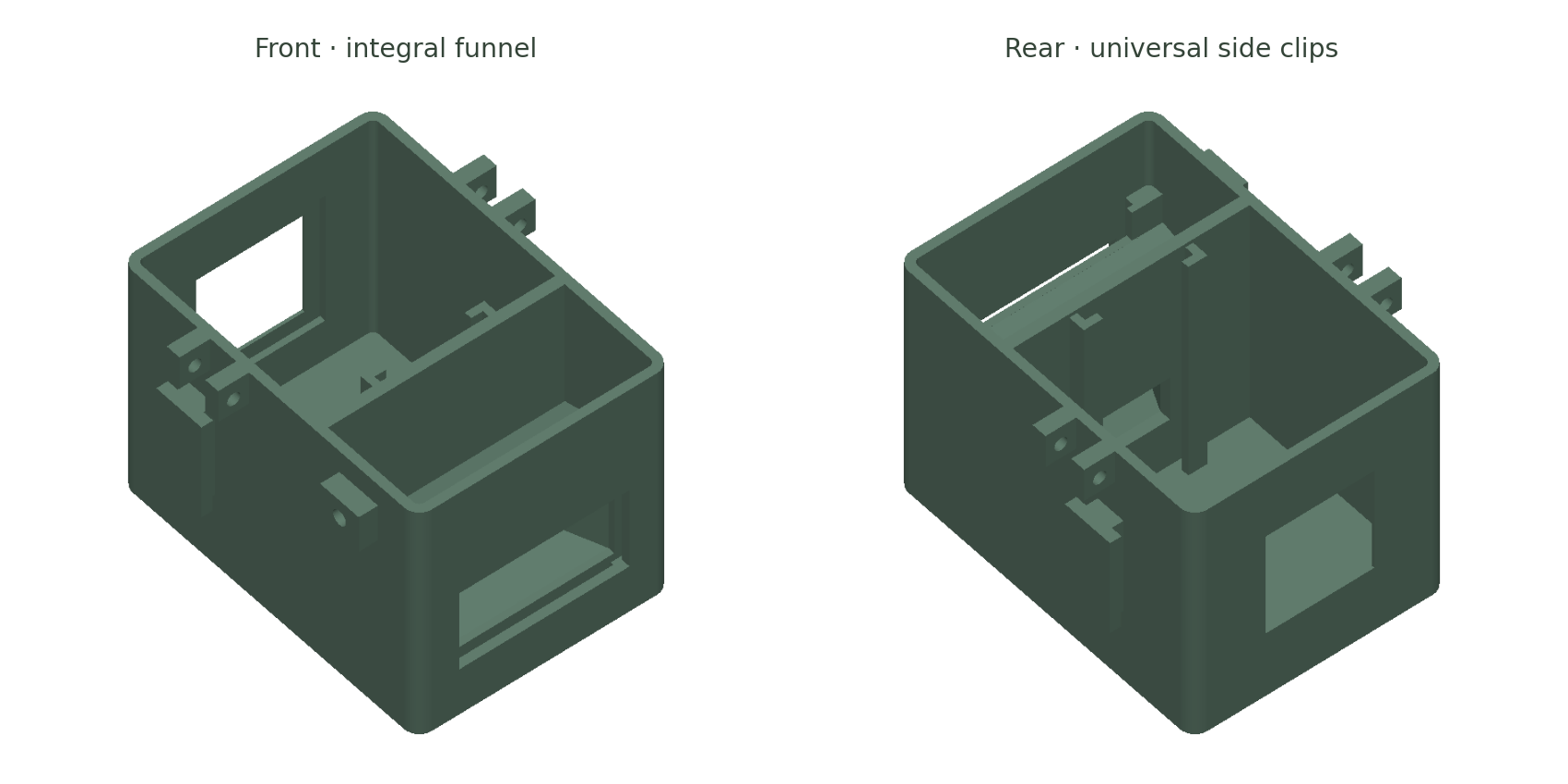

Front and rear CAD views of the Rev D trap body, showing the integral funnel and fixed universal side clips. — Rev D · Body with universal mounting clips · Open image for a closer look

Available now · Free download

Phototaxis
zoea trap.

A light-guided collector for Amano zoea. Print the body, then choose the mounting style for your tank.

Rev D · PrototypeUpdated October 5, 2026

1. Download the body & internals

Download body + internals

One STL · Body, lid, corrected gate, baffle & all seven screen inserts. Removable parts print separately in the same layout.

2. Choose your mounting pair

Hook length is measured from the rim to the trap top. Check your rim and waterline before choosing.

Each mount download contains the left/right pair, ready to print.

Choose a paired mount file below:

Hooks · 35 mm below rim

Hooks · 50 mm below rim

Suction cups · 5 mm stem

Suction cups · 7 mm stem

Padded screws · 35 mm below rim

Padded screws · 50 mm below rim

Follow the larval research

Rev D's mounting system is a prototype: digital checks have passed, but physical fit and load performance remain untested. Print the connector test pieces first, check tank fit, and supervise initial use.

Print guide & test pieces

The complete Rev D ZIP includes the body and internals, all mounting pairs, individual replacement parts, connector test pieces, editable source and assembly guidance.

Download Rev D package

One body print

The eleven separate components occupy 210 × 209 mm. Allow room for your brim, or split into objects and print in batches. Choose one screen for assembly. An external light, a cut clear panel and assembly hardware are required.

Revision log

October 5, 2026

Rev D · Modular mounting

Fixed universal clips are built into the body. Hooks, suction-cup carriers and padded screw mounts download as separate left/right pairs. The body print now also includes the lid, corrected gate, baffle and all seven screen inserts, retaining their Rev C.1 geometry.

October 3, 2026

Public release · Rev C.1

The complete September 29 package is now available as a free download. No geometry changes in this publication.

September 29, 2026

Rev C.1 · Gate fit correction

Gate narrowed by 0.96 mm, from 28.00 to 27.04 mm, following a printed-part measurement. Body and guides unchanged. Existing Rev C owners only need to reprint the gate.

September 23, 2026

Rev C · Body, lid & mounting update

Rear mounting ears and window lip removed; the funnel became integral with a solid base. Nylon lid bolts and a screen-retaining stop were added, alongside wider trial screens, an open frame and two adjustable over-rim hangers.

The included guide covers the earlier body, screen, lid, and mounting changes in detail.

Older revisions

Choose a revision to see what changed and download its original package.

Rev C.1 · September 29, 2026 · Corrected gate

Gate-only fit correction. The body, guides and adjustable hangers carry forward from Rev C; existing owners only need to reprint the gate.

Changes from Rev C

Gate width reduced by 0.96 mm, from 28.00 to 27.04 mm, following a printed-part measurement.

Rev C · September 23, 2026 · Original gate

Original Rev C package. Its 28 mm gate was reported too wide; use the corrected gate from Rev C.1 for the fit correction.

Changes from Rev B

Removed the rear mounting ears and 1 mm window lip to keep the rear face clear against the tank glass.
Integrated the funnel into the body and filled the cavities beneath it; cleaning uses flushing through both ends.
Added external nylon lid bolts and a lid stop to retain the screen insert.
Added 2.5, 3.0 and 3.5 mm trial screens with thinner ribs and entrance bevels, plus an open frame for larval-only vessels. The 1.2, 1.6 and 2.0 mm options remain available.
Added two adjustable over-rim hangers with vertical slots and padded nylon clamping screws.

On the bench

In development.

More designs are taking shape. Files will follow after testing.

Rev B.1 · Prototype

Metamorphosed post-larvae trap

A flow-guided collection trap for newly metamorphosed Amano post-larvae. Flow and animal-response testing are still ahead.

Prototype

HMF / mattenfilter module

A printable Hamburg mattenfilter module, being refined for fit and performance.
